Example MADSci Lab

This is a fully functional example of a MADSci-powered self-driving laboratory. It demonstrates the complete MADSci ecosystem including all core managers, multiple virtual laboratory nodes, and various workflows that showcase autonomous experimentation capabilities.

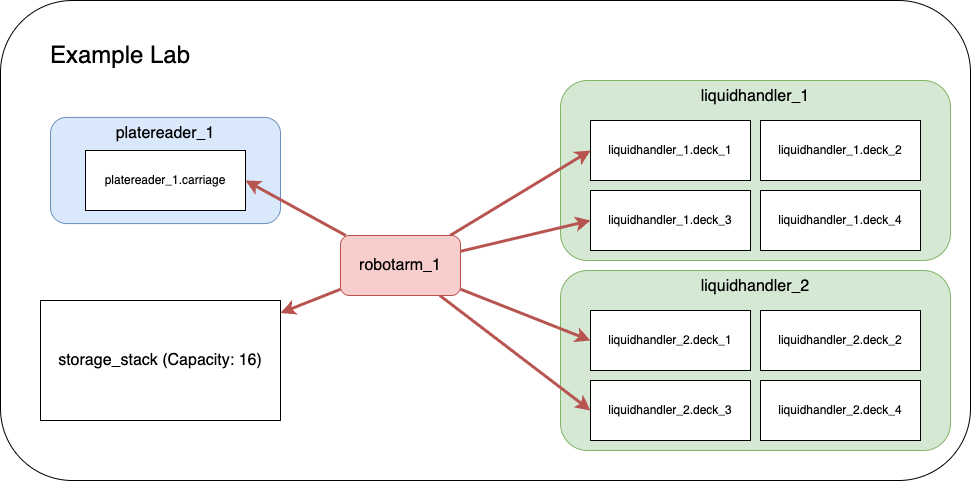

Lab Architecture¶

The example lab simulates a real laboratory environment with:

Infrastructure Services¶

• MongoDB (Port 27017): Event and experiment data storage

• PostgreSQL (Port 5432): Resource and inventory management

• Redis (Port 6379): Real-time state management and task queuing

• MinIO (Port 9000/9001): Object storage for data files

Core Managers¶

• Lab Manager (Port 8000): Central dashboard and lab coordination

• Event Manager (Port 8001): Distributed event logging and monitoring

• Experiment Manager (Port 8002): Experimental runs and campaign management

• Resource Manager (Port 8003): Laboratory resource and inventory tracking

• Data Manager (Port 8004): Data capture, storage, and querying

• Workcell Manager (Port 8005): Workflow coordination and scheduling

• Location Manager (Port 8006): Laboratory location management and resource attachments

Laboratory Nodes¶

• liquidhandler_1 (Port 2000): First liquid handling robot

• liquidhandler_2 (Port 2001): Second liquid handling robot

• robotarm_1 (Port 2002): Robotic arm for material transfer

• platereader_1 (Port 2003): Plate reader for measurements

• advanced_example_node (Port 2004): Advanced node demonstrating complex workflows

Prerequisites¶

Before starting the example lab, ensure you have:

1. Docker: Docker Desktop (recommended) or Rancher Desktop

   • Docker Compose v2.0 or higher

   • At least 4GB RAM allocated to Docker

   • At least 10GB free disk space

2. Network Requirements:

   • Ports 2000-2004, 5432, 6379, 8000-8006, 9000-9001, and 27017 available

   • Internet access for pulling Docker images

3. System Requirements:

   • Linux, macOS, or Windows with WSL2

   • x86_64 or arm64 architecture

Quick Start¶

1. Start the Example Lab¶

From the root of the MADSci repository:

# Start all services
docker compose up

# Or start in detached mode (runs in background)
docker compose up -d

# View logs if running detached
docker compose logs -f

2. Verify Lab Status¶

Once all services are running (this may take 1-2 minutes), verify the lab is operational:

# Check service health
docker compose ps

# Verify managers are responding
curl http://localhost:8000/health  # Lab Manager
curl http://localhost:8001/health  # Event Manager
curl http://localhost:8002/health  # Experiment Manager
curl http://localhost:8003/health  # Resource Manager
curl http://localhost:8004/health  # Data Manager
curl http://localhost:8005/health  # Workcell Manager
curl http://localhost:8006/health  # Location Manager

# Check node status
curl http://localhost:2000/health  # liquidhandler_1
curl http://localhost:2001/health  # liquidhandler_2
curl http://localhost:2002/health  # robotarm_1
curl http://localhost:2003/health  # platereader_1
curl http://localhost:2004/health  # advanced_example_node

3. Access the Dashboard¶

Open your browser and navigate to: http://localhost:8000

The dashboard provides:

• Real-time lab status monitoring

• Node management and control

• Workflow execution interface

• Data visualization tools

• System health monitoring

Configuration¶

Environment Variables¶

The lab can be customized using environment variables. Create a .env file in the repository root or modify the existing one:

# Copy the example environment file
cp .env.example .env

# Edit configuration as needed
nano .env

Key configuration options:

• REPO_PATH: Path to the repository (defaults to current directory)

• USER_ID/GROUP_ID: User permissions for Docker volumes

• Database URLs: Custom database connection strings

• Manager URLs: Custom service endpoints

Manager Configuration¶

Each manager can be configured through YAML files in managers/:

• example_lab.manager.yaml: Lab manager configuration

• example_event.manager.yaml: Event manager settings

• example_experiment.manager.yaml: Experiment manager setup

• example_resource.manager.yaml: Resource manager configuration

• example_data.manager.yaml: Data manager settings

• example_workcell.manager.yaml: Workcell manager configuration

• example_location.manager.yaml: Location manager setup

Node Configuration¶

Node definitions are located in node_definitions/:

• Each node has both a .node.yaml (configuration) and .info.yaml (metadata) file

• Configurations specify node capabilities, resources, and network settings

• Node modules are implemented in example_modules/

Usage Examples¶

Running Workflows¶

The example lab includes several pre-configured workflows demonstrating different capabilities:

1. Simple Transfer Workflow¶

# Execute a basic resource transfer between liquid handlers
python -c "
from madsci.client.workcell_client import WorkcellClient
client = WorkcellClient()
result = client.start_workflow('workflows/simple_transfer.workflow.yaml')
print(f'Workflow result: {result}')
"

2. Multi-step Transfer Workflow¶

# Execute a complex workflow with multiple steps
python -c "
from madsci.client.workcell_client import WorkcellClient
client = WorkcellClient()
result = client.start_workflow('workflows/multistep_transfer.workflow.yaml')
print(f'Workflow result: {result}')
"

3. Minimal Test Workflow¶

# Run a simple test to verify lab functionality
python -c "
from madsci.client.workcell_client import WorkcellClient
client = WorkcellClient()
result = client.start_workflow('workflows/minimal_test.workflow.yaml')
print(f'Workflow result: {result}')
"

Interactive Learning¶

The example lab includes comprehensive Jupyter notebooks that provide hands-on tutorials:

📓 experiment_notebook.ipynb - Experiment Development Tutorial¶

• Learn to create ExperimentApplications for automated research

• Work with all MADSci client libraries (Workcell, Resource, Location, Data, Experiment)

• Execute workflows and handle experimental data

• Build complete autonomous experiment loops

• Interactive examples with live code execution

🔧 node_notebook.ipynb - Node Development Tutorial¶

• Understand MADSci Node architecture and lifecycle

• Learn to integrate laboratory instruments using RestNode

• Implement action methods and configuration

• Test nodes interactively with mock servers

• Visual diagrams and step-by-step implementation

Start the notebooks:

# Local Jupyter installation
cd notebooks/
jupyter lab

# Or use Docker environment
docker compose exec lab_manager jupyter lab --ip=0.0.0.0 --port=8888 --no-browser --allow-root
# Then open http://localhost:8888 in your browser

Direct Node Interaction¶

Interact directly with individual nodes:

# Get node status
curl http://localhost:2000/status

# Execute a node action
curl -X POST http://localhost:2000/actions/prepare \
  -H "Content-Type: application/json" \
  -d '{"parameters": {}}'

# Query node capabilities
curl http://localhost:2000/definition

Lab Tour¶

1. Dashboard Overview¶

The main dashboard at http://localhost:8000 provides:

• Lab Status: Real-time overview of all nodes and managers

• Active Workflows: Currently running experiments and their progress

• Resource Inventory: Track plates, liquids, and other lab materials

• Event Log: System events and notifications

• Data Browser: Access experimental data and results

2. Node Management¶

• Node Status: Monitor individual instrument health and availability

• Action Queue: View pending and executing actions

• Resource Tracking: See what resources are attached to each node

• Calibration: Access node-specific calibration and maintenance tools

3. Workflow Execution¶

• Workflow Library: Browse available experimental protocols

• Execution Monitor: Track workflow progress in real-time

• Parameter Setting: Configure workflow parameters before execution

• Result Visualization: View experimental results and data

4. Data Management¶

• Data Storage: All experimental data is automatically captured

• Query Interface: Search and filter experimental results

• Export Tools: Download data in various formats

• Visualization: Built-in plotting and analysis tools

Troubleshooting¶

Common Issues¶

Services Won’t Start¶

# Check Docker status
docker --version
docker compose --version

# Verify port availability
netstat -tuln | grep -E '(8000|8001|8002|8003|8004|8005|8006|2000|2001|2002|2003|2004|5432|6379|27017|9000|9001)'

# Check Docker resources
docker system df
docker system prune  # Clean up if needed

Database Connection Errors¶

# Reset database volumes
docker compose down -v
docker compose up

# Check database logs
docker compose logs postgres
docker compose logs mongodb
docker compose logs redis

Node Communication Issues¶

# Check node logs
docker compose logs liquidhandler_1
docker compose logs robotarm_1
docker compose logs platereader_1

# Verify node registration
curl http://localhost:8000/api/nodes

# Check workcell manager status
curl http://localhost:8005/status

Performance Issues¶

# Monitor resource usage
docker stats

# Check service health
docker compose ps

# Review system logs
docker compose logs --tail=50

Log Files¶

Logs are available through Docker Compose:

# View all logs
docker compose logs

# Follow logs in real-time
docker compose logs -f

# View logs for specific service
docker compose logs lab_manager
docker compose logs liquidhandler_1

# Check system logs
docker compose logs --tail=100 -f

Getting Help¶

If you encounter issues:

1. Check the logs using the commands above

2. Verify configuration in .env and manager YAML files

3. Review port conflicts with other running services

4. Check Docker resources and available disk space

5. Consult the main documentation in the repository root

Advanced Usage¶

Custom Node Development¶

To create custom nodes based on the examples:

1. Study existing modules in example_modules/

2. Copy a similar node (e.g., liquidhandler.py)

3. Modify the node class to implement your instrument’s capabilities

4. Update the node definition YAML files

5. Add the new node to the compose.yaml file

Workflow Development¶

Create custom workflows by:

1. Examining existing workflows in workflows/

2. Understanding the workflow schema (see MADSci documentation)

3. Testing simple workflows before creating complex ones

4. Using the dashboard to monitor workflow execution

Integration with Real Hardware¶

To integrate real laboratory instruments:

1. Replace virtual nodes with real instrument drivers

2. Update network configurations for physical device IP addresses

3. Modify resource templates to match actual laboratory inventory

4. Test thoroughly in a safe environment before production use

Scaling and Production Deployment¶

For production use:

1. Use external databases instead of containerized ones

2. Implement proper authentication and access controls

3. Set up monitoring and alerting systems

4. Configure backup and disaster recovery procedures

5. Use container orchestration (e.g., Kubernetes) for high availability

Next Steps¶

1. Explore the notebooks: Run through notebooks/experiment_notebook.ipynb for hands-on experience

2. Try different workflows: Execute the various workflow examples

3. Modify configurations: Experiment with different lab setups

4. Develop custom nodes: Create virtual instruments for your specific needs

5. Build custom workflows: Design experiments specific to your research

Learning Resources¶

📓 Interactive Tutorials (Recommended)¶

• experiment_notebook.ipynb - Complete experiment development with live code

• node_notebook.ipynb - Interactive node development with visual guides

📋 Reference Documentation¶

• Workflow Development Guide - Workflow schema and advanced patterns

• Node Development Quick Reference - Production deployment patterns and quick reference

• Example Lab Troubleshooting Guide - Comprehensive problem-solving guide

📚 Framework Documentation¶

• Configuration.md - Complete configuration reference

• Main README - MADSci overview and installation

• Individual package documentation - Detailed API references

Stopping the Lab¶

When finished with the example lab:

# Stop all services (containers remain for restart)
docker compose stop

# Stop and remove all containers
docker compose down

# Stop, remove containers, and delete volumes (complete cleanup)
docker compose down -v --remove-orphans

The lab can be restarted at any time using docker compose up.
